Solvent Recyclers, Distillation and Reclaim Systems

 Reduce Solvent Cost with In-House Recycling and Recovery Phone: 262 695-7536

Home About PPCTS Recyclers How it Works Recycler Faq's Code Requirements Bags/Liners
ECOpure solvent recyclers are available in different sizes to meet your specific waste generation requirements

Markets served
•General manufacturing •Flexography
•Aerospace and aviation •Lithography
•Marine •Wood finishing
•Automotive •Power & energy
•Petroleum •Pharmaceutical

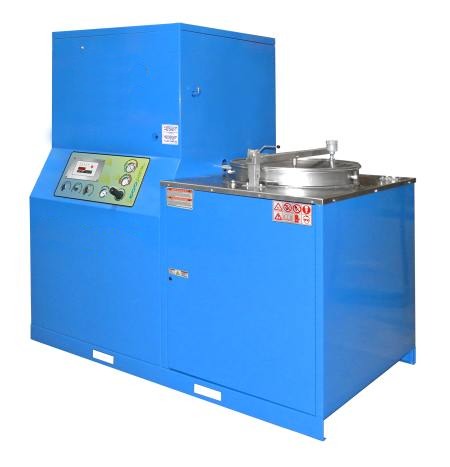

The vertical design of the UL2208 Ex-Proof Class 1 Div 1 Group D Certified ECOpure SR30, 60, 120, 180 and 240 solvent recycler is an improved version to the older type solvent recyclers with low positioned condensers. The ECOpure solvent recyclers are one of the most reliable and best performing unit in the industry, on the leading edge of technology and built to last.




Available in sizes 8, 16 , 32, 48 and 64 gallon, with or without vacuum, will enable you to recycle all your cleaning solvents and reduce your solvent purchases by 95% or better and your waste
disposal cost by 90% or better.



Typical solvents like Acetone, MEK, lighter than air solvents and solvents with low boiling points normally do not require vacuum.



Solvents with high boiling points like new generation Xylenes, MNP's, Chloro's and heavier than air solvents require distillation under vacuum for safety and efficiency.



We always evaluate your solvents and contaminants MSDS sheets prior to recommending the proper system. It is very important to also identify the possible presence of nitrocellulose and acids in your dirty solvent mix.



Features :


Recovery rate : 97% and more.



Return on investment : typically 4 to 12 months.


Recycle time : 4 to 6 hours.



Easy to use : processor controlled, easy residue removal and positive-seal cover.


Recycles most popular solvents, including mineral spirit, Acetone, IPA, MEK, Xylene, Hexane, Diacetone Alcohol, Ethyl, Methyl, Chlorinated solvents, flexo press wash, flexo plate wash & litho solvents and more.



Safety standards : CSA certified USA and CAN to UL standard 2208, Class 1, Div. 1, Group D.

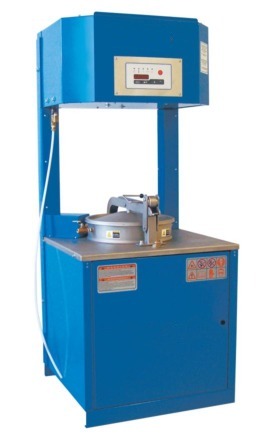

SR 30 and SR 30V (8 gallons) - How it works?

SR 60 and SR 60V (16 gallons) - How it works?

SR 120 and SR 120V (32 gallons)- How it Works?

SR 180 and SR 180V (48 gallons)- How it Works?

SR 240 and SR 240V (64 gallons) - How it works?

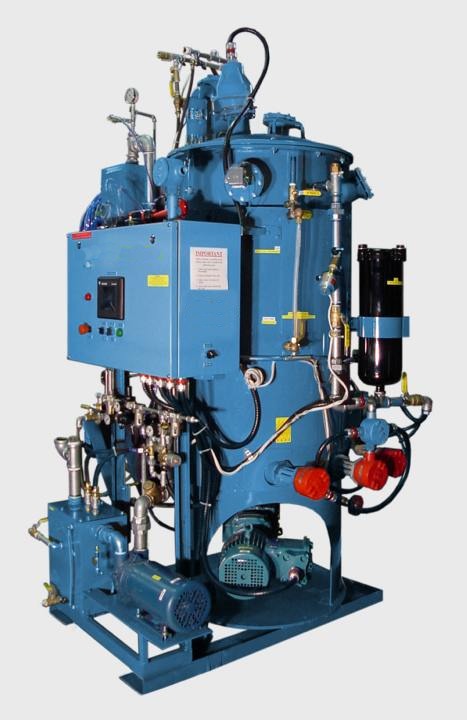

ECOpure SRC Series

This ECOpure SRC series solvent recyclers are available in several sizes, as a batch or continuous flow systems, with and without an internal motorized scrapper, as well as with an optional secondary misting circuit to increase performance and shorten cycle times. The SRC can be also be customized for very specific applications The complete recycling process is controlled by PLC.

Some water/solvent mixes can be distilled and separated.

SRC ( 30 to 356 gallons and larger custom systems)

How it works?

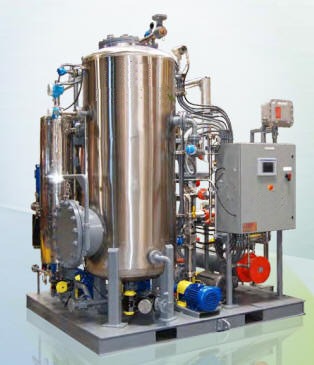

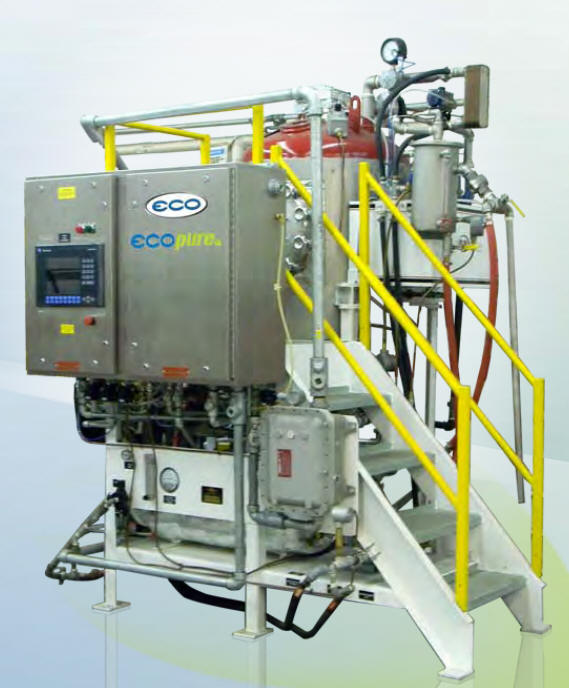

ECOpure SRXC Series

The ECOpure SRXC-Series is a completely
automated chemical distillation column
designed to address a high purity chemical
purification application in multiple
industries. The system is designed to remove
water, other chemicals, and or contaminants
from the chemical being purified.
A specially designed fractionating column
with a reflux stream is used to separate
the materials in a continuous mode while
keeping a flow rate of up to 25 – 5,000 gph
on a 24 hour per day basis.

Custom Distillation Columns SRXC (25 - 5,000 gph)

How it works?
